SPECIFICATIONS
Can Be Customized:
| Parameter | Specification |
|---|---|
| Bobbin Size | Φ630 - 800mm |
| Wire Diameter Range | Soft Wire: Φ0.3 - Φ3mm Hard Wire: Φ1.8 - Φ2.6mm |
| Max Speed | 500 M/Min |
| Pay - Off Type | Double - Shaft Barrel Pay - Off |
| Max Bearing Capacity | 1.5 T |
| Pay - Off Motor | 0.37 KW Gear Motor |
| Barrel Material | Cast Iron |
| Lifting Method | Screw Lifting |
| Machine Dimensions | 2500 × 1600 × 1300 Mm (L×W×H) |
| Total Weight | 2200 KG |
APPLICATION&FAETURES
APPLICATION:
Engineered for high-speed wire extrusion (500m/min), delivering continuous, stable payoff for soft/hard wires. Minimizes conductor stress in critical processes like cable production. Ideal for demanding manufacturing environments requiring zero-interruption wire release.
FEATURES：

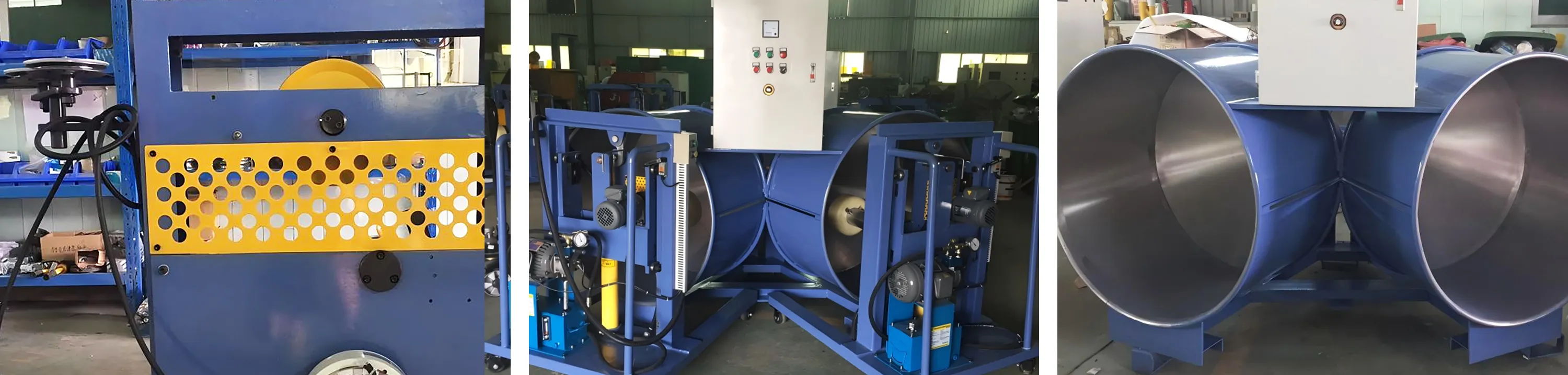

Patented conical cast-iron barrel with parabolic profile enables zero-friction payoff. Dual-shaft design + integrated trolley ensures continuous operation with rapid spool transitions (Ø630-800mm). Features auto wire-break shutdown, adjustable magnetic tension, and heavy-duty construction.
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
