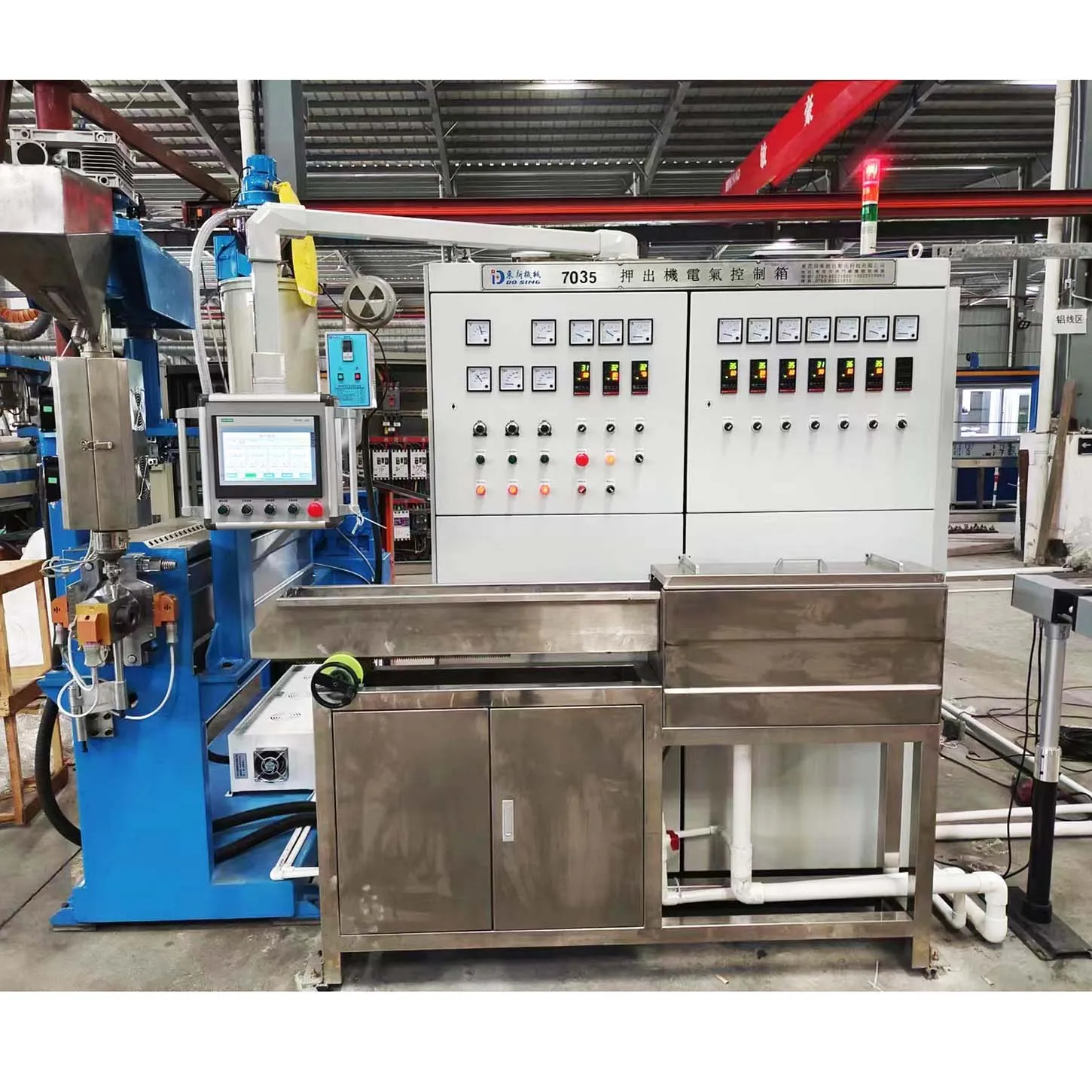

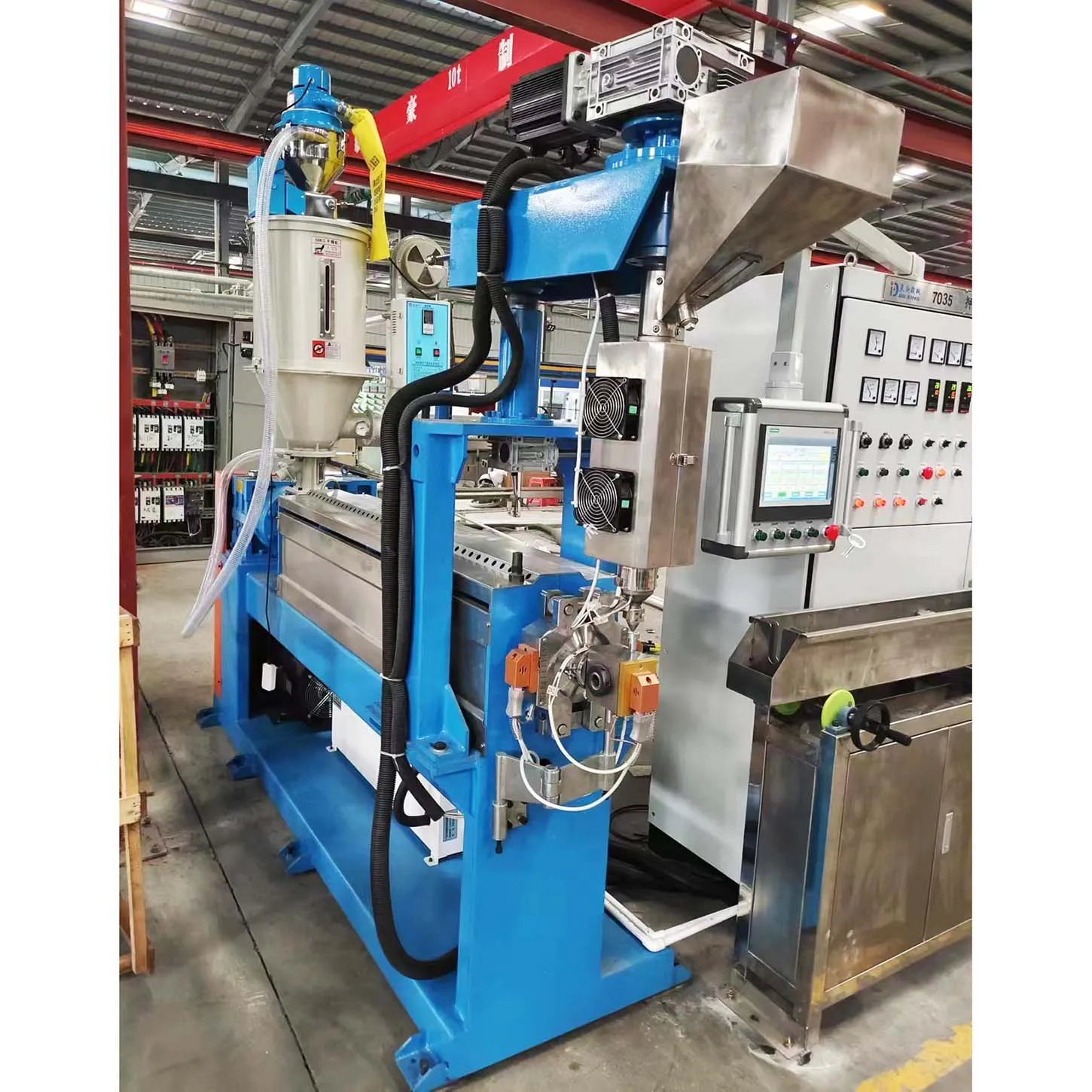

APPLICATION & FEATURES
Application:
The sheathed extruder and double-layer co-extrusion extruder are suitable for double-layer extrusion of various BV, BVR, BVN, RV, low-smoke halogen-free flame-retardant, environmentally friendly building wiring and thin nylon sheathed cables.
High output:
Specialized design to make the screw more useful, none viscose, not escape the chromium and so on.
High-quality:
The production of extrusion Concentricity up to 93-97%, out DlA. Tolerance: + 0.005,foam skin + 0.008, capacitance: + 0.5
Temperatrue controlled:
Used ScR power control machine, with the import temperature control,the temperature of machine body controlled in + 1℃c
Control esay:
Human screen touch, operation will be more easier, more, and more conviniance.
High-capacity design:
Optimize the screw structure, featuring fast color change and high wire speed, with the maximum wire speed reaching 600m/min (solid core wire).
SPECIFICATION
Can Be Customized:
| Machine Model | Φ70 | Φ80 | Φ90 | Φ100 |
|---|---|---|---|---|
| Core DIA | Φ1~8mm | Φ2~12mm | Φ4~16mm | Φ8~25mm |
| Product DIA | Φ2~12mm | Φ3~14mm | Φ5~18mm | Φ10~30mm |
| Extrusion Material | PVC, SR-PVC, LDPE, LHNF, PE, PP, PU | |||
| Screw Parameter | L/D Ratio:26 Compression Ratio: 2.7-3.2 Screw material: SACM Vacuum heat treatment, surface grinding chrome-plating polishing | |||
| Body and Head Temperature | 4+2 | 4+2 | 5+2 | 7+2 |
| Heating Power | 20KW | 23KW | 27KW | 40KW |
| Extrutor Power | 30HP | 40HP | 50HP | 75HP |
| MAX Output | 140KG/H | 170KG/H | 210KG/H | 320KG/H |
| MAX Speed | 400M/MIN | 300M/MIN | 250M/MIN | 200M/MIN |
| Cooling Station | Extension activity cooling station, the quantity is 500, total length 1.7M, with the single class dry water machine | |||

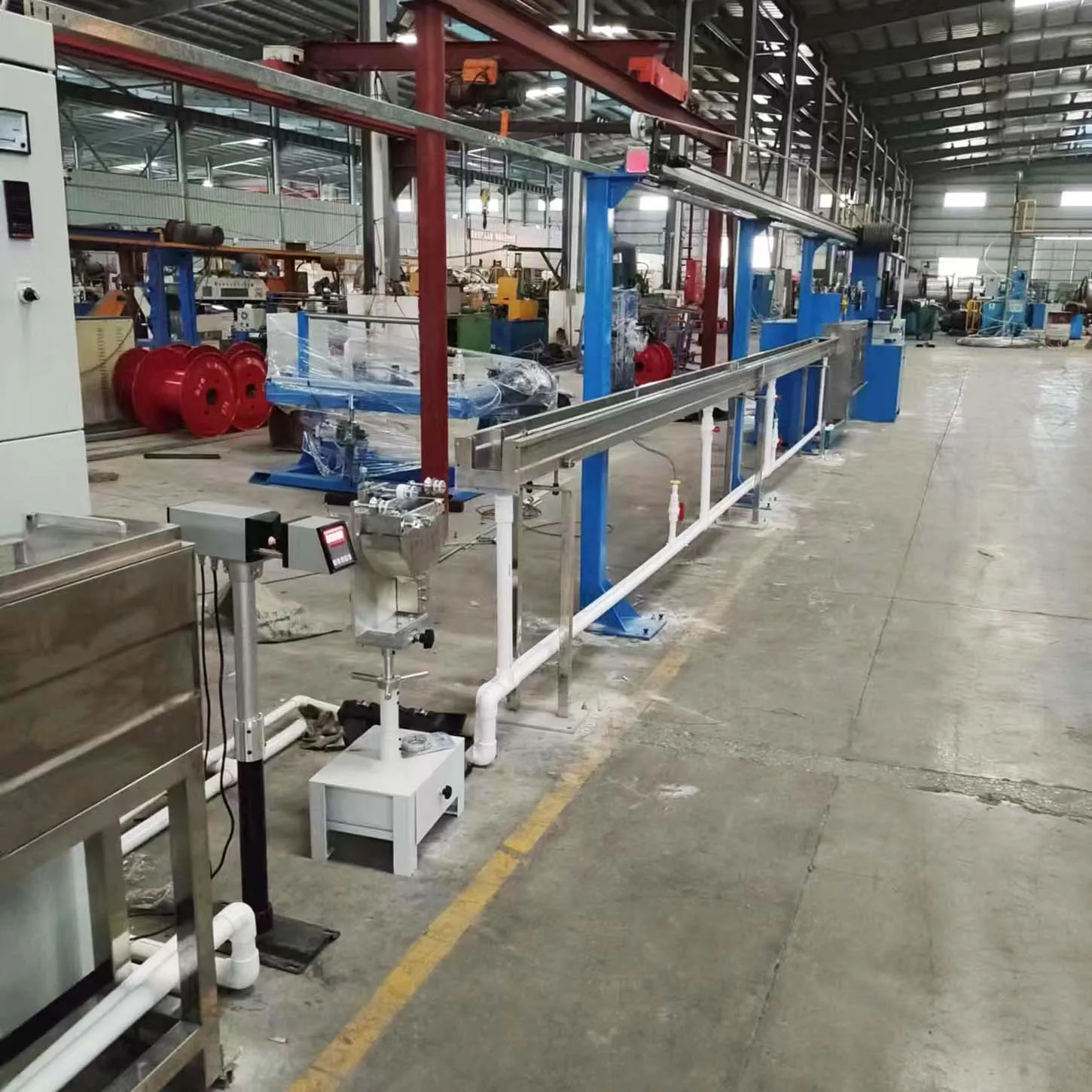

| U Type cooling Length | 10M | 10M | 12M | 15M |
| Accmulate Parameter | Φ300-450 accumulate wheel, fix wheel 8 pcs+moving wheel 9 pcs, standard/inclined accumulate shift, length 10M, accumulate quantity 170M | |||
| Traction Power | 5HP | 7.5HP | 7.5HP | 15HP |
| Pay-off Type | Passive pay-off/double heads non-axis brake passive pay-off/non-axis active pay-off, suitable for* 400-630 bobbin | |||

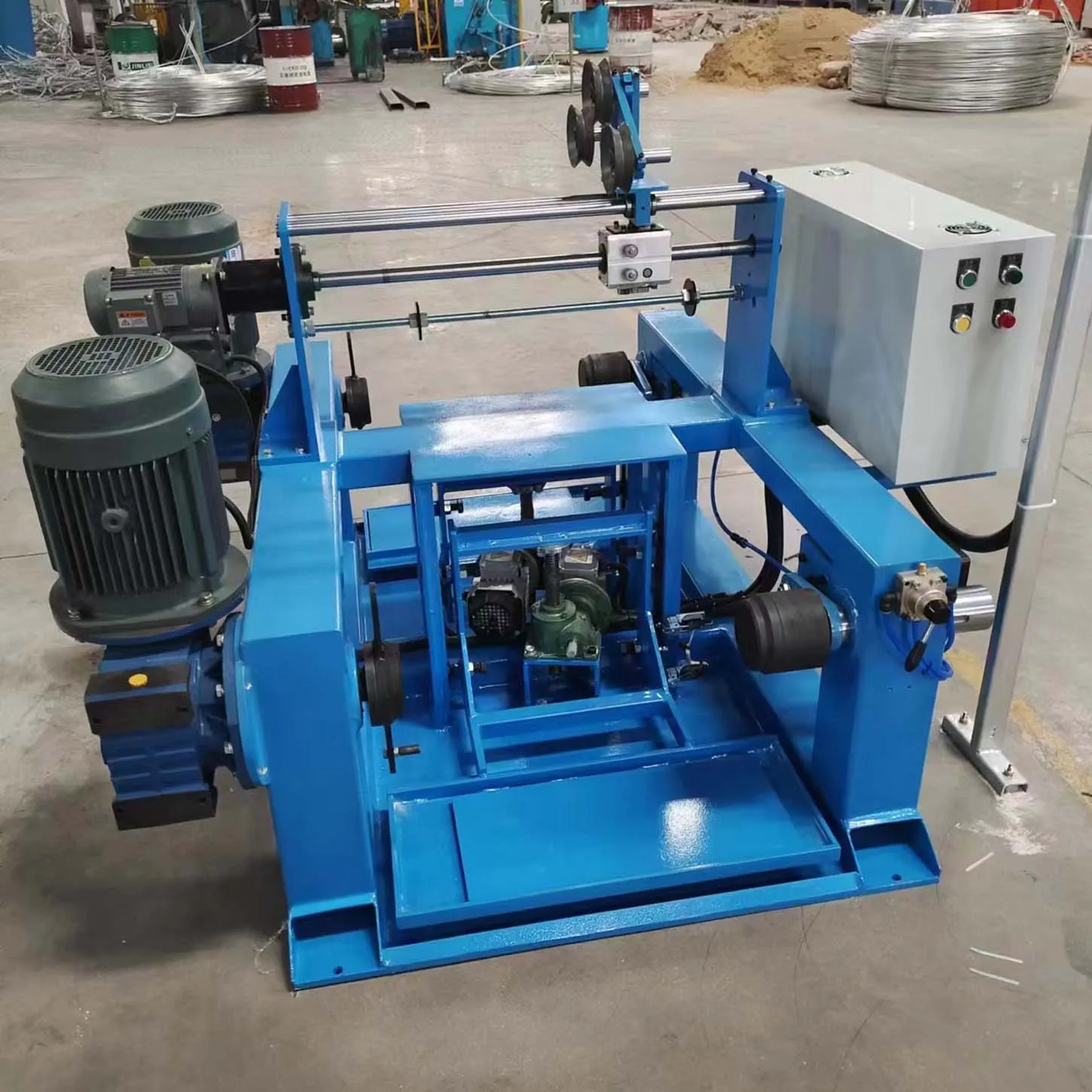

| Take-up Type | Double shaft take off, 5HP motor with frequency converter adjust speed, could be singled/linkage running, suitable for Φ 400-630 bobbin | |||
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
