SPECIFICATION
Can Be Customized
| Parameter | Specification |
|---|---|

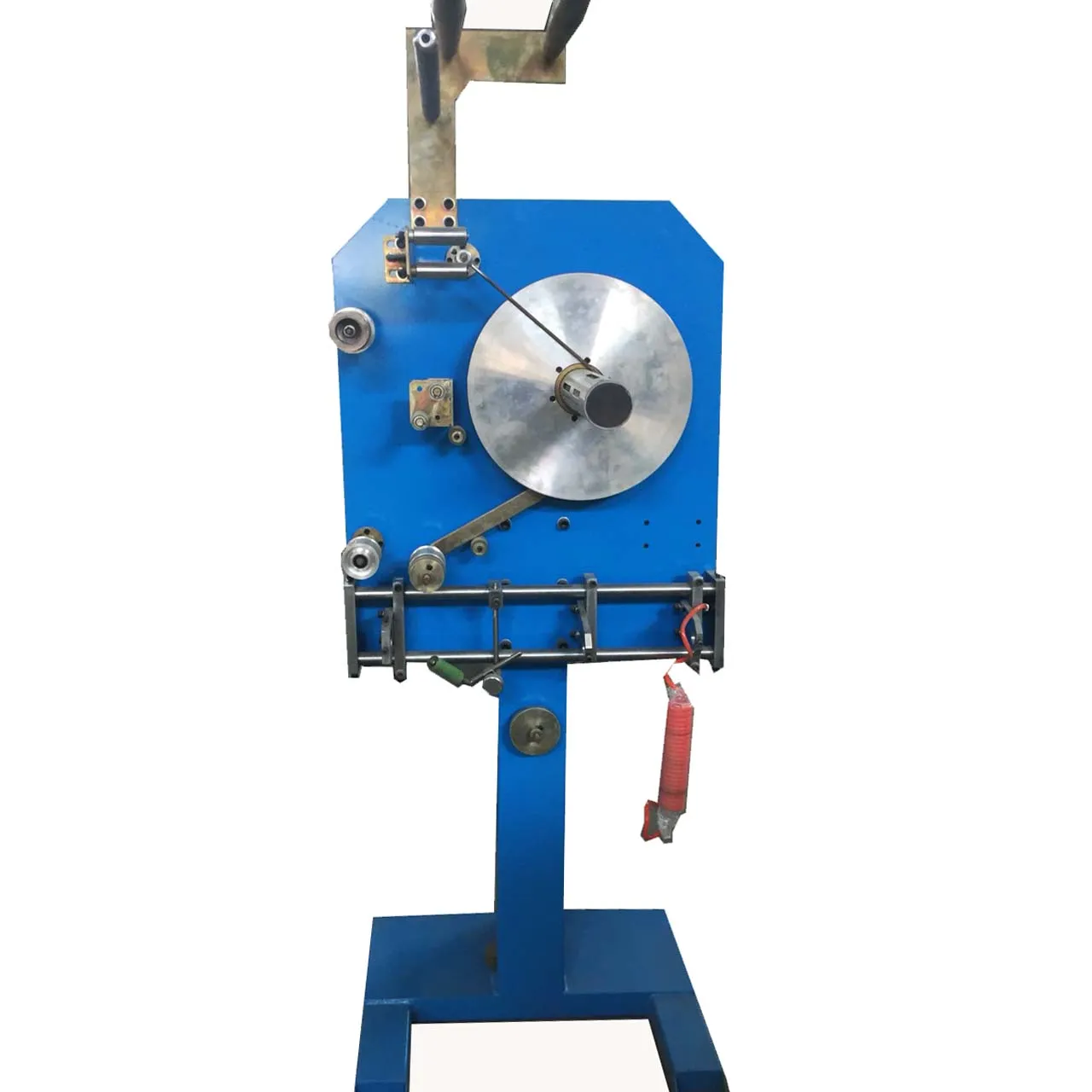

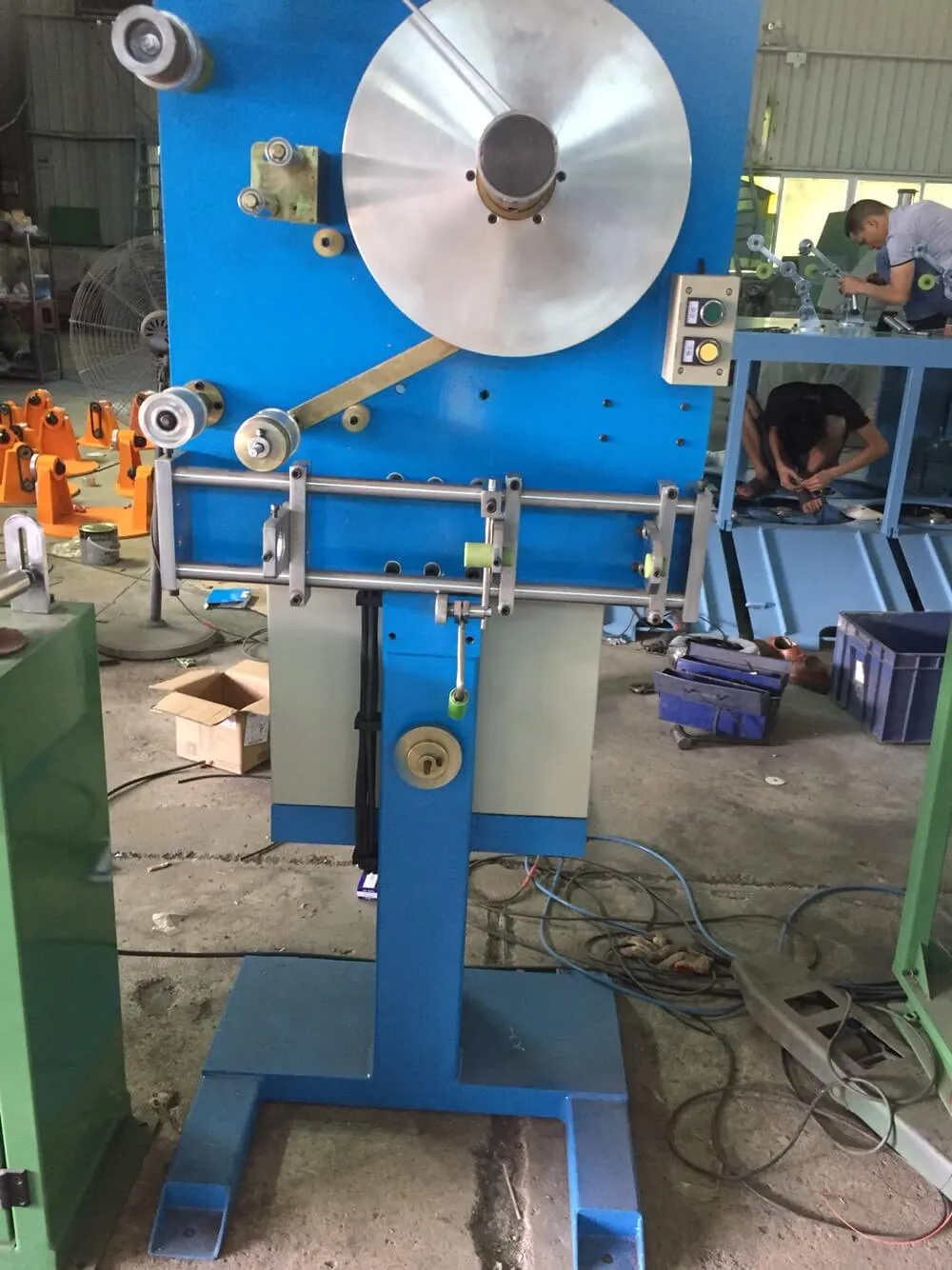

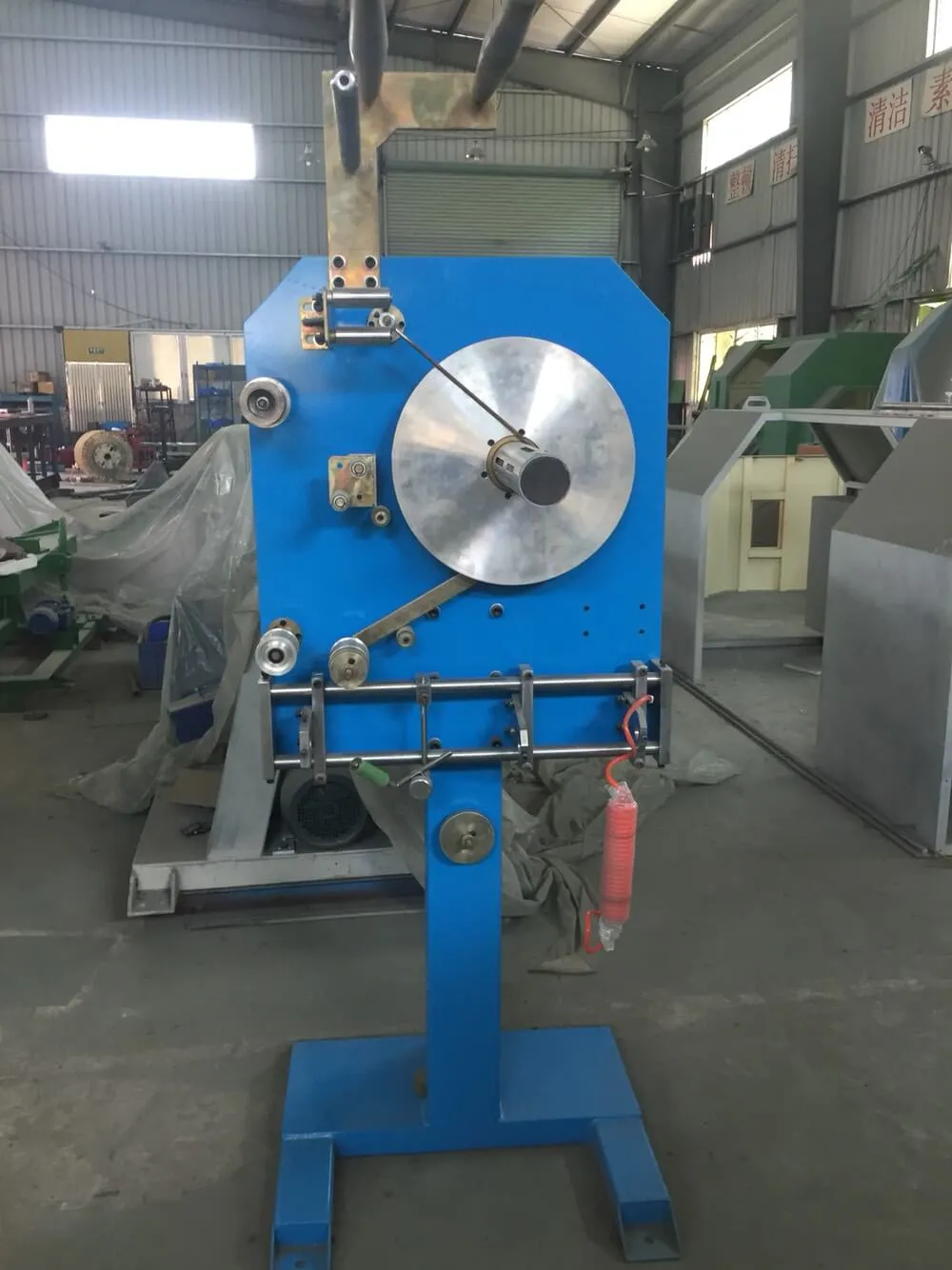

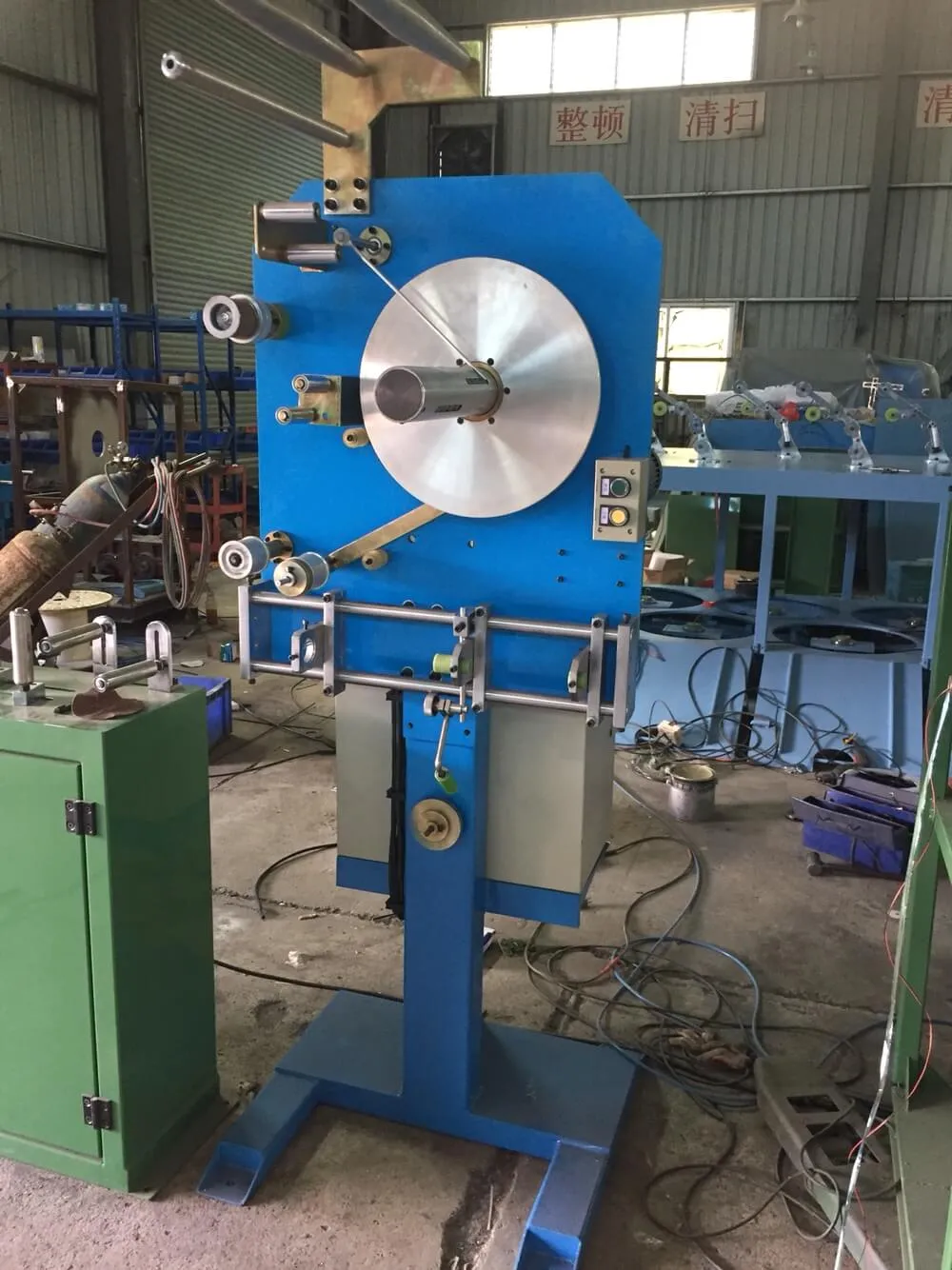

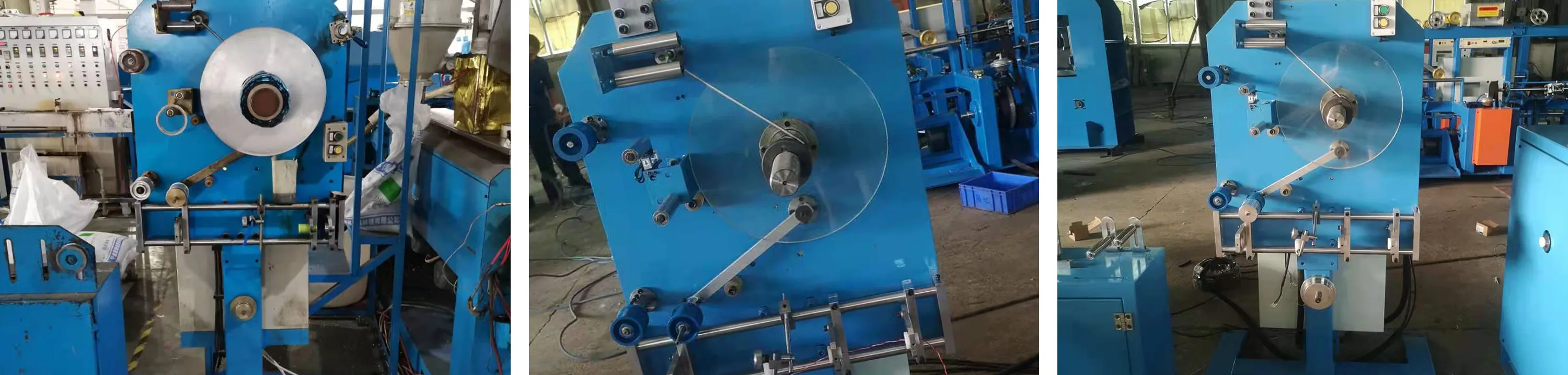

| Model | MF-4S (Magnetic Powder Brake System) |
| Stations | 4 independent stations |
| Cable Ø Range | Φ0.5 – Φ25 mm |
| Line Speed | 0–100 m/min |
| Tension Control | Magnetic powder brake (30–300g ±5g precision) |
| Tape Width | 8–100 mm (pneumatic auto-adjustment) |
| Tape Compatibility | Flat/Corrugated Al foil, PET film |
| Seam Accuracy | ±0.2 mm (laser edge tracking) |
| Hot-Melt Adhesive | Integrated 220°C PID control |
| Power Supply | 380V/50Hz, 5.5kW |
| Noise Level | ≤78 dB (ISO 4871 certified) |
APPLICATION&FEATURES
APPLICATION:
Precision longitudinal foil wrapping for cable shielding
Primary Use: EMI/RF shielding layer application on telecom/data cable conductors
Material: Mylar-Aluminum composite foil supplied on 76mm ID/300mm OD cores (typical output of coil winding machines)
Compatibility: Cat6/Cat7, coaxial, medical cables
FEATURES:
Engineered for reliability and efficiency
Tension Control: Closed-loop system with pendulum arm + center-guide sensor
Speed: Max 120 m/min operation with torque stability
Reliability: Industrial-grade electrical components (IP54 standard)
Ergonomics: 1,000mm center height for production line integration
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
