SPECIFICATIONS
Can Be Customized:
| Parameter | Specification |
|---|---|
| Safety Protections | Auto-stop on wire breakage or empty spool |
| Weight | 620 kg |
| Dimensions (L×W×H) | 1,130 × 1,300 × 1,000 mm |

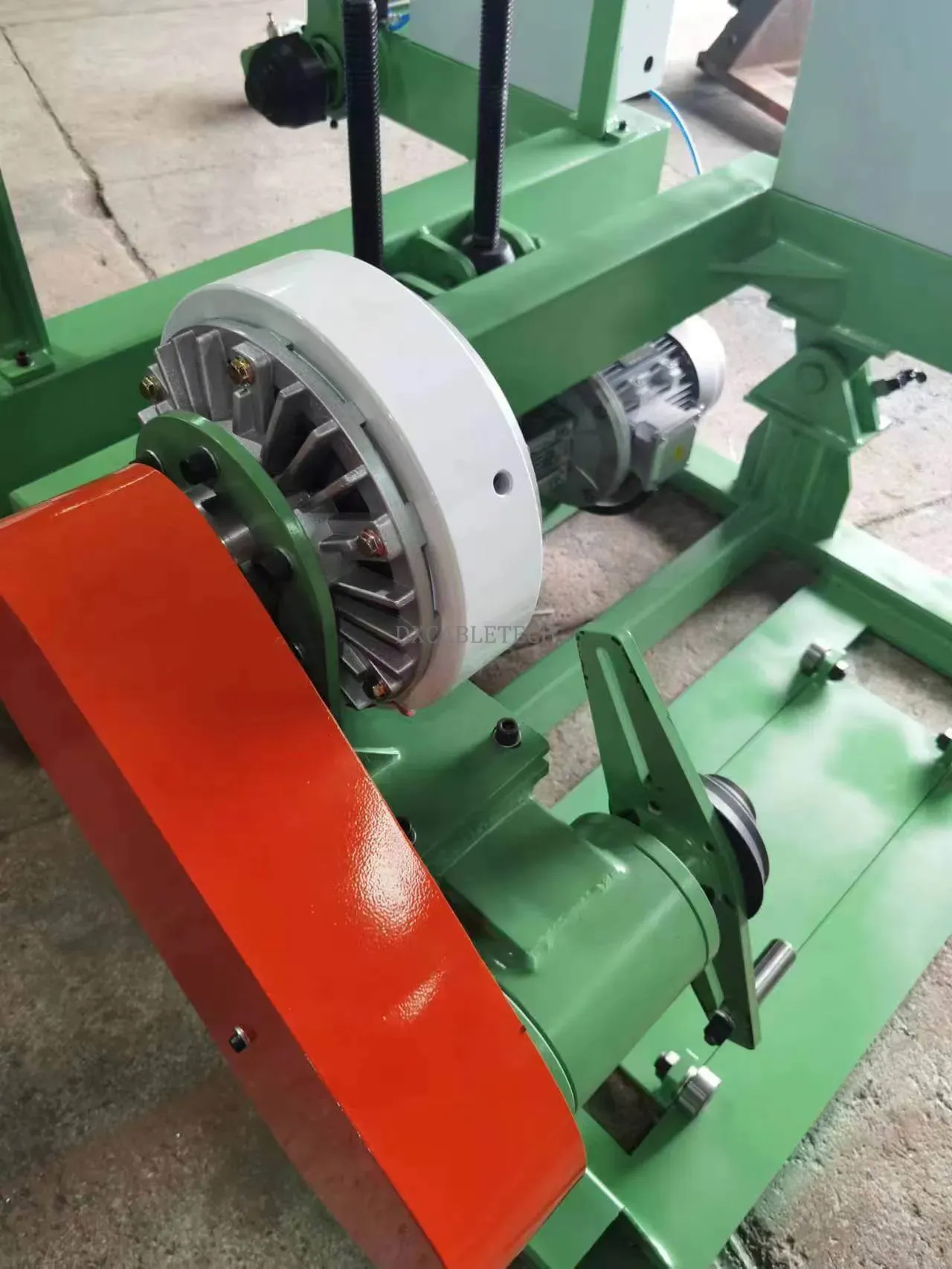

| Tension Control | Adjustable via magnetic particle clutch (10kg torque) + precision tension controller |

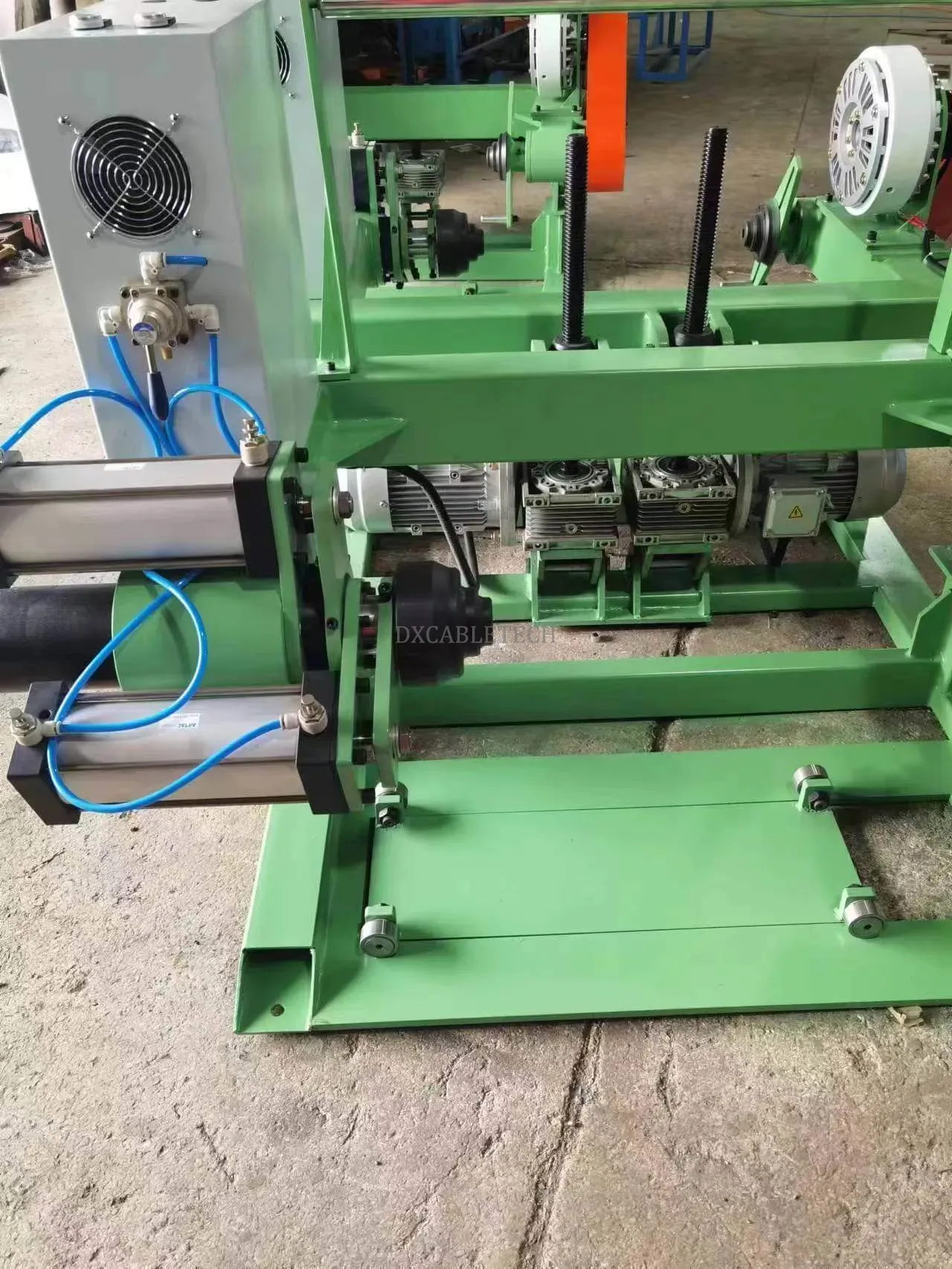

| Spool Chucking System | Pneumatic chucking system (Twin cylinders, 350-400mm total stroke) |

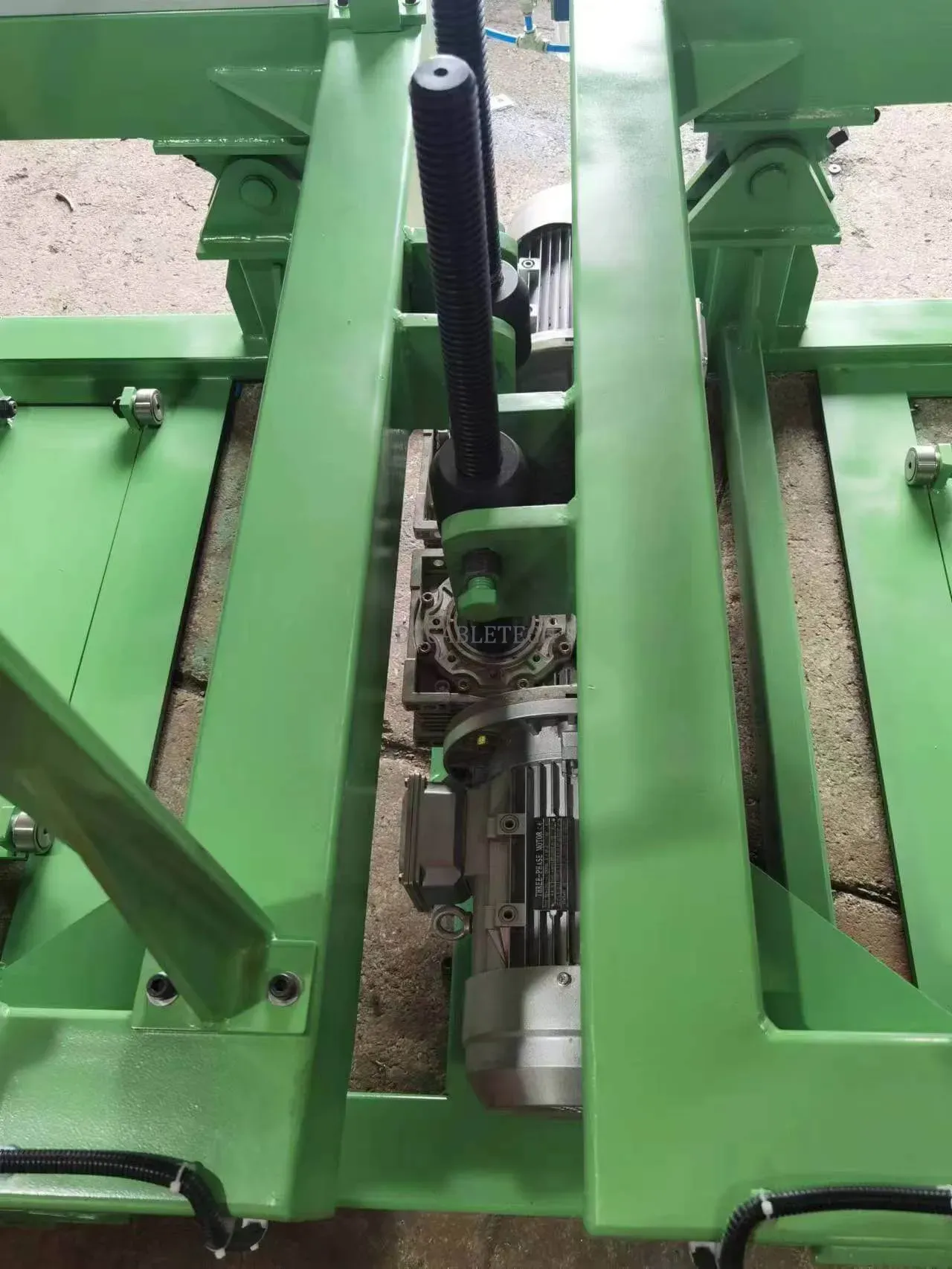

| Lifting Mechanism | Electric lift with RV75 1:30 reducer + 2.2KW motor (Capacity: 2,500kg) |
| Applicable Wire Speed | 200 m/min (Calculated at Ø250mm core diameter) |
| Applicable Wire Diameter | Ø15mm |
| Applicable Spool Diameter Range | Ø500-630-700-800-1000mm (Bore: Ø56-Ø130) |
APPLICATION & FEATURES
APPLICATION：
Designed for high-speed unwinding with cable reel payoff of large cable reels (Ø500-1000mm, Ø56-130mm bore) in continuous production lines. This robust pay-off stand is optimized for thick cables/conductor wires up to Ø15mm diameter requiring precise tension control during processing. Ideal for industrial cable manufacturing where minimal downtime is critical.
FEATURES：

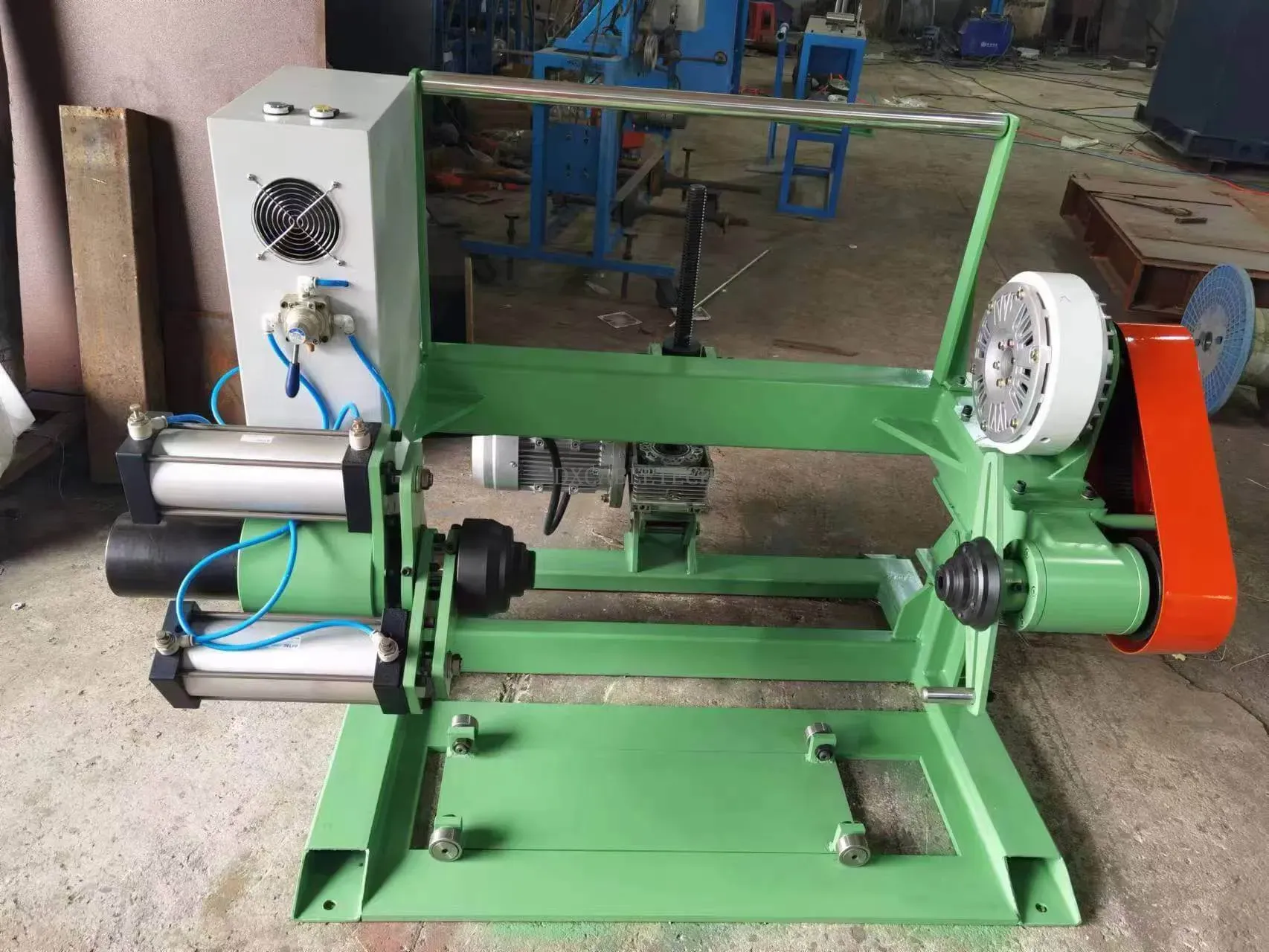

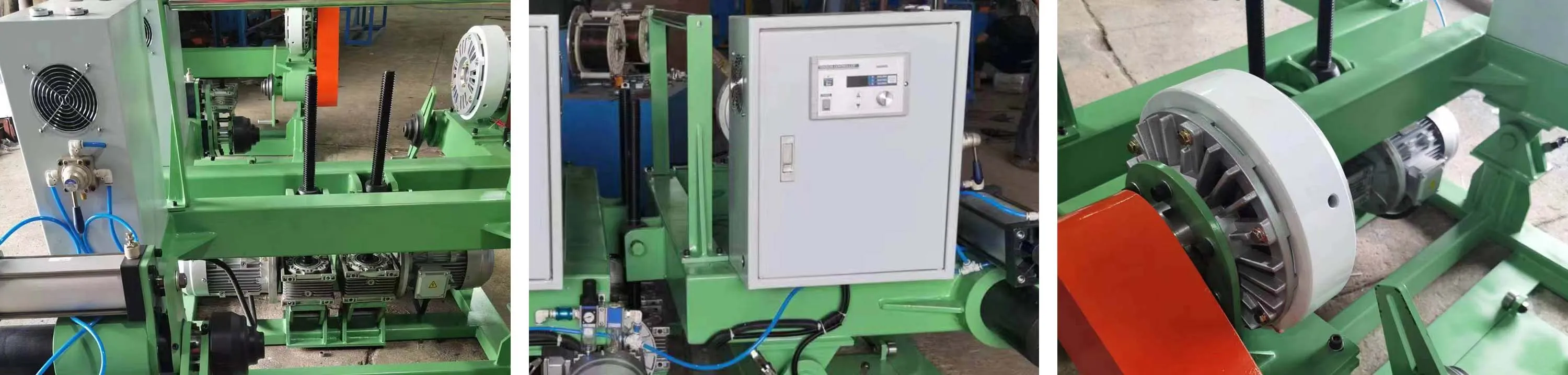

Shaftless dual-station with pneumatic chucking (twin cylinders, 350-400mm stroke) for quick reel changes. Precision tension via 10kg magnetic particle brake + controller. Heavy-duty electric lift (2.2KW motor, RV75 reducer, 2,500kg capacity). Auto-stop on breakage/empty spool. Operates at 200m/min. Compact footprint for a high-capacity pay-off stand: 1,130×1,300×1,000mm.
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
