APPLICATION & FEATURES
Application:

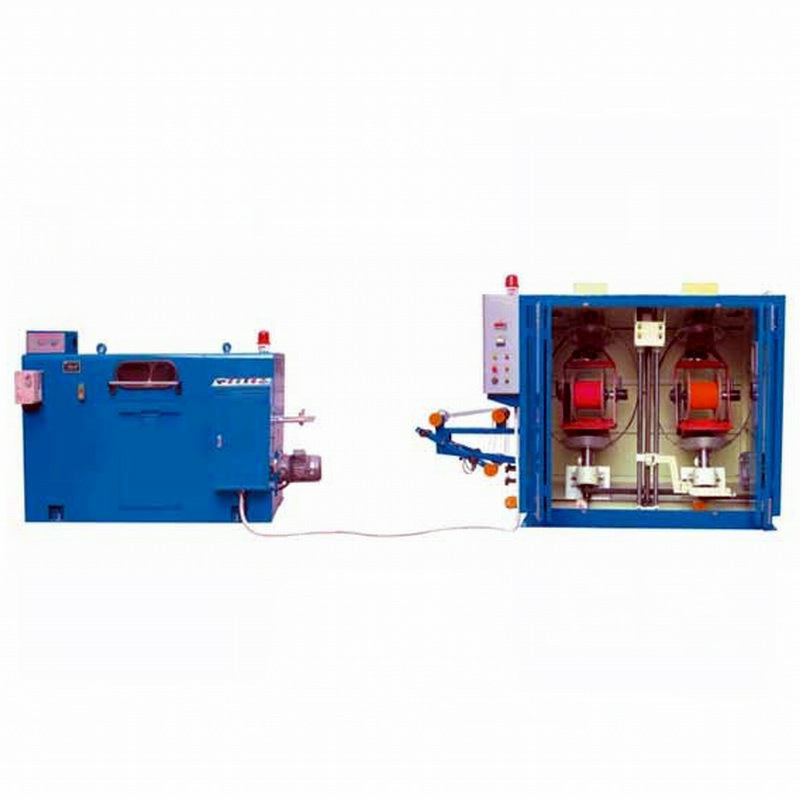

Used for back-twisting and pair twisting of data cables such as CAT-5, CAT-5E, CAT-6, etc.
Features:
Performs back-twisting before pair twisting and reduces wire damage during the twisting process. The back-twist machine and pair-twist machine work in coordination.
SPECIFICATIONS
Customizable:
| Machine Model | Vertical Pair Twister | Back Twister |
|---|---|---|
| Wire Diameter Range | Core wire: Φ0.75–1.5mm; Conductor: Φ 0.3–0.9mm | Core Insulation Outer Diameter: 1.4mm (back-twist); Feed diameter: Φ0.5–3.5mm |
| Rotation Speed | Max 2500rpm, Max 400 m/min | Max 1000 rpm, Max 400m/min |
| Back-Twist Ratio | Max 90% Infinitely Adjustable | |
| Power | 5HP/7.5HP frequency inverter motor; Drive: infinite speed regulation | 3.75kW + 0.75kW |
| Pay-off Tray | Φ500(OD)*Φ56(ID)*Φ300(Outer Width) | |
| Take-up Tray | 500mm (capacity ≤250kg) | Φ500/630mm |
| Pay-off Device | Equipped with reserve wire tension sensor arm, connected to pay-off motor, ensures constant tension wire pay-off | |
| Tension Range | 200g, stable and adjustable | |
| Back-Twist Tension Arm | Vertical double-head, tension wheel 120mm, 3+4 water-based, precision potentiometer | |
| Tray Weight Requirement | <250kg, Wire pay-off tension 3-10N | |
| Tray Size | MAXΦ500(OD)*MAX320(Outer Width), manufactured according to customer request. | |
OUR SERVICES
Providing Free Pre-Sales Training:
We can provide customer training to ensure customers can fully utilize the machine — this includes the correct operation method, proper maintenance procedures, and troubleshooting simple issues.
On-Site Installation Guidance (For Customer):
The buyer pays for round-trip air tickets, accommodation, security, and the daily fee for each person.
Details of After-Sales Service Content:
We provide responsive after-sales support and complete the delivery.
Free service warranty period: 12 months from the date of shipment (excluding wear parts).
We will charge you for travel expenses and other costs.
If the visa is obtained in time, our engineers will respond within 24 hours domestically and within a maximum of 2 weeks for overseas.
