SPECIFICATION
Can Be Customized:
| Parameter | Specification |
|---|---|
| Conductor Type | Stranded (IEC 60228 Class 2/5/6) |
| Conductor Diameter | 0.6 - 4.0 mm |
| Maximum Speed | 1000 RPM |
| Untwisting Rate | 0 - 100%, Stepless Adjustment |
| Tension Control | Dual Magnetic Powder Brake (1.2 kg) |
| Spool Size | Ø200 / 250 / 300 mm Fiber Spools |
| Rotation Direction | S/Z Selectable |
| Braking Response | 3 - 10 S (Upon Wire Break) |
APPLICATION & FEATURES
100% Stranded Conductor Processing
Handles Ø0.6-4.0mm stranded conductors for CAT5e-CAT8 cables.
Industry-Leading Untwisting Range
0-100% stepless rate adjustment – doubles standard capability.

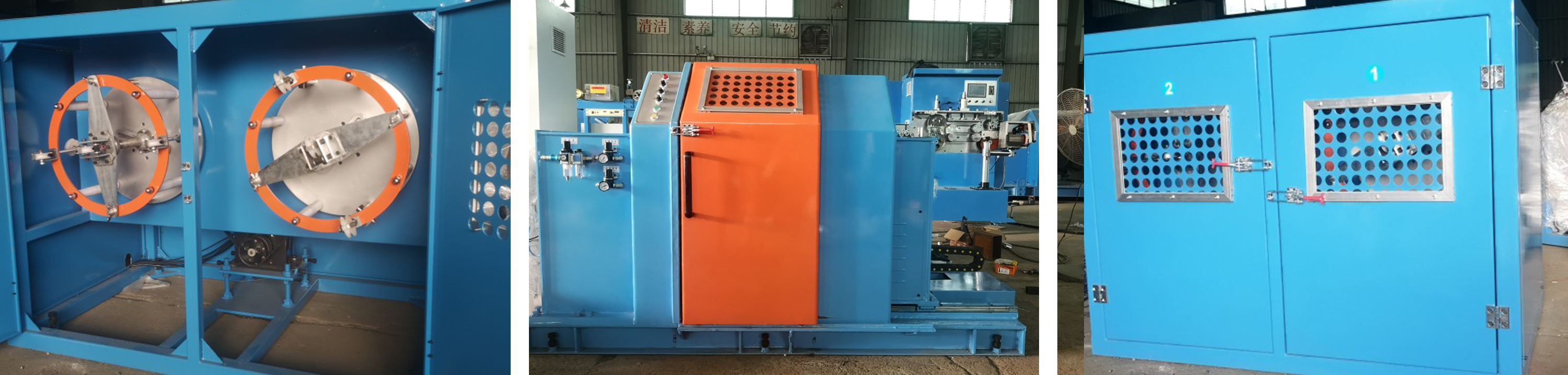

Compact Basket Design
Vertical rotating basket minimizes footprint for Ø300mm spools.
Smart Safety System
Auto-braking + triple alarms (door/wire/tape break).
APPLICATIONS:
CAT-6A/7/8 data cores
5G fine coaxial cables
Automotive control wires
MIL-spec twisted pairs
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
