SPECIFICATION
Can Be Customized
| Parameter | Specification |
|---|---|
| Model | MF-4S (Magnetic Powder Brake System) |

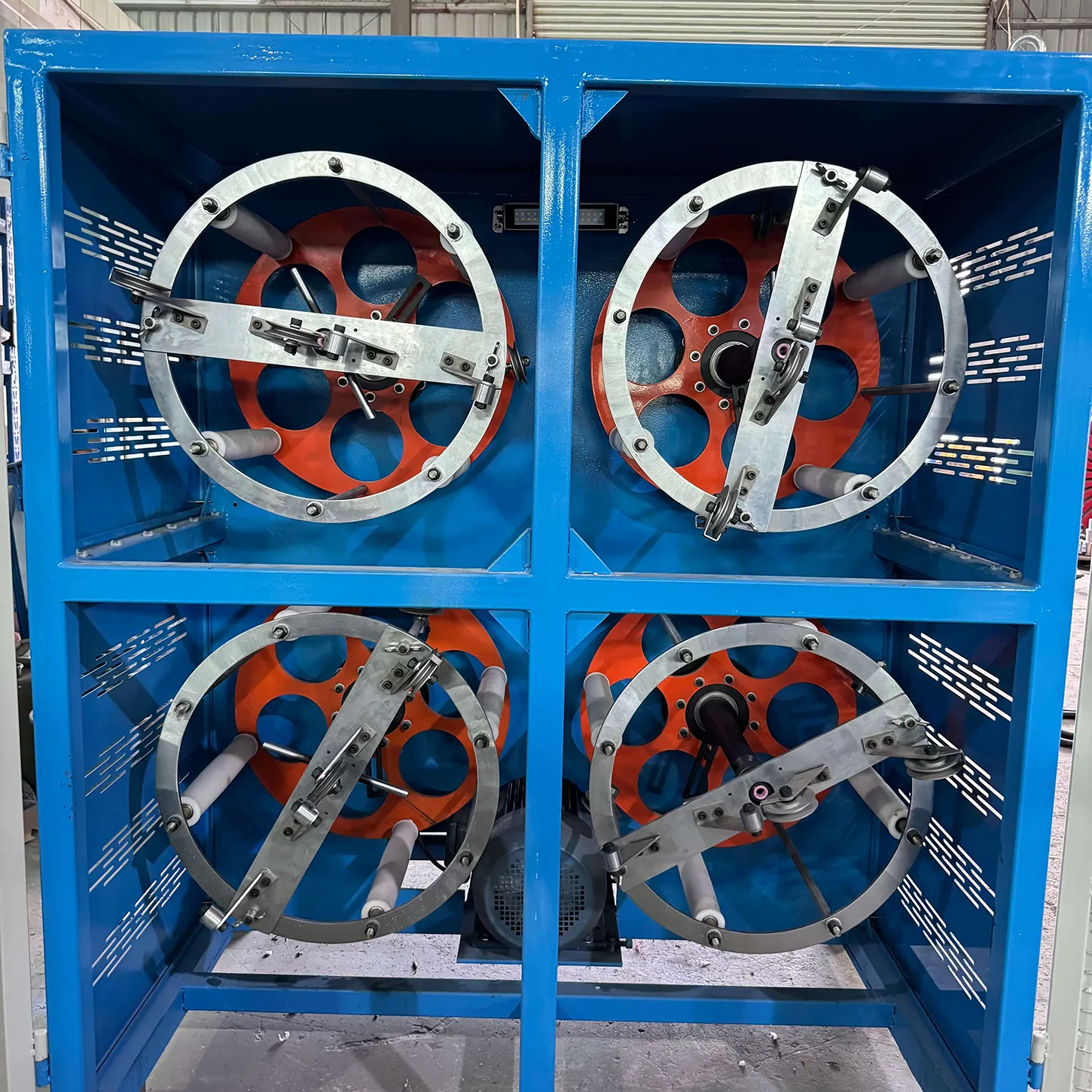

| Stations | 4 independent stations |
| Cable ∅ Range | ∅0.5 – ∅25 mm |
| Line Speed | 0–100 m/min |

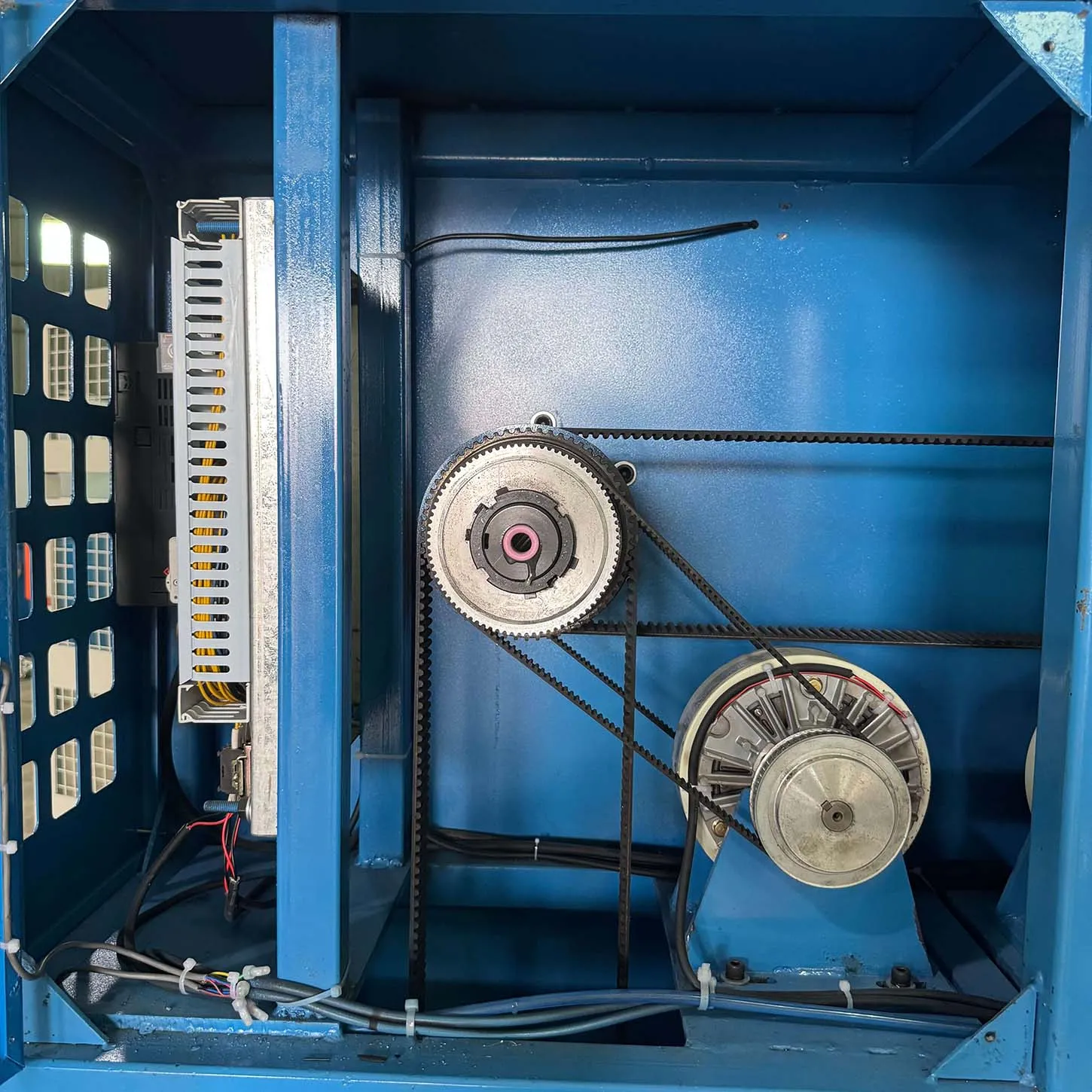

| Tension Control | Magnetic powder brake (30–300g ±5g precision) |
| Tape Width | 8–100 mm (pneumatic auto-adjustment) |
| Tape Compatibility | Flat/Corrugated Al foil, PET film |
| Seam Accuracy | ±0.2 mm (laser edge tracking) |
| Hot-Melt Adhesive | Integrated 220°C PID control |
| Power Supply | 380V/50Hz, 5.5kW |
| Noise Level | ≤78 dB (ISO 4871 certified) |
APPLICATION&FEATURES
APPLICATION：
Core untwisting & pay-off for high-precision cable production machines, handling:• Data cables
• Communication cables
• Control cables
• Specialty cables
FEATURES：

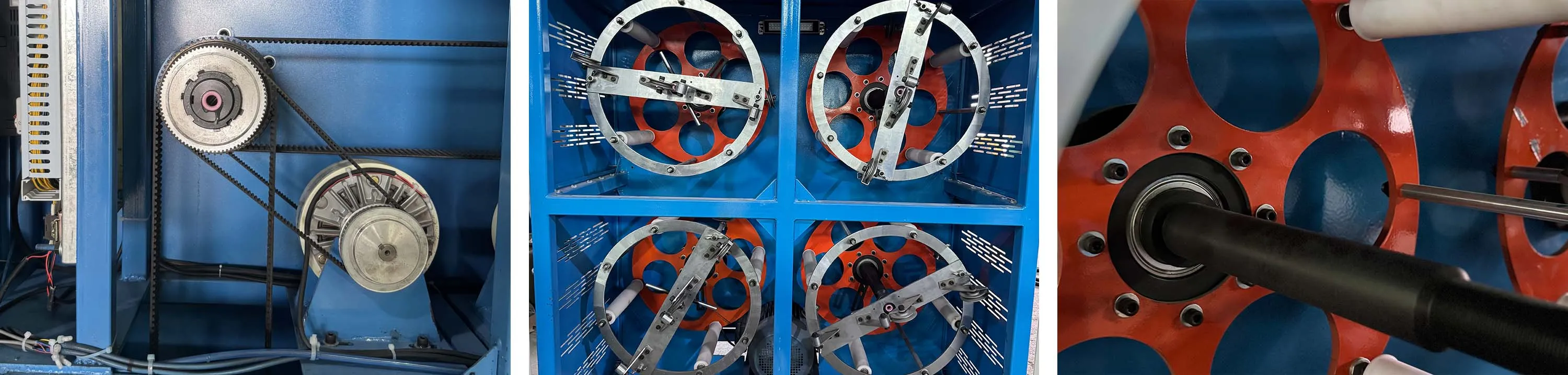

Structural Design

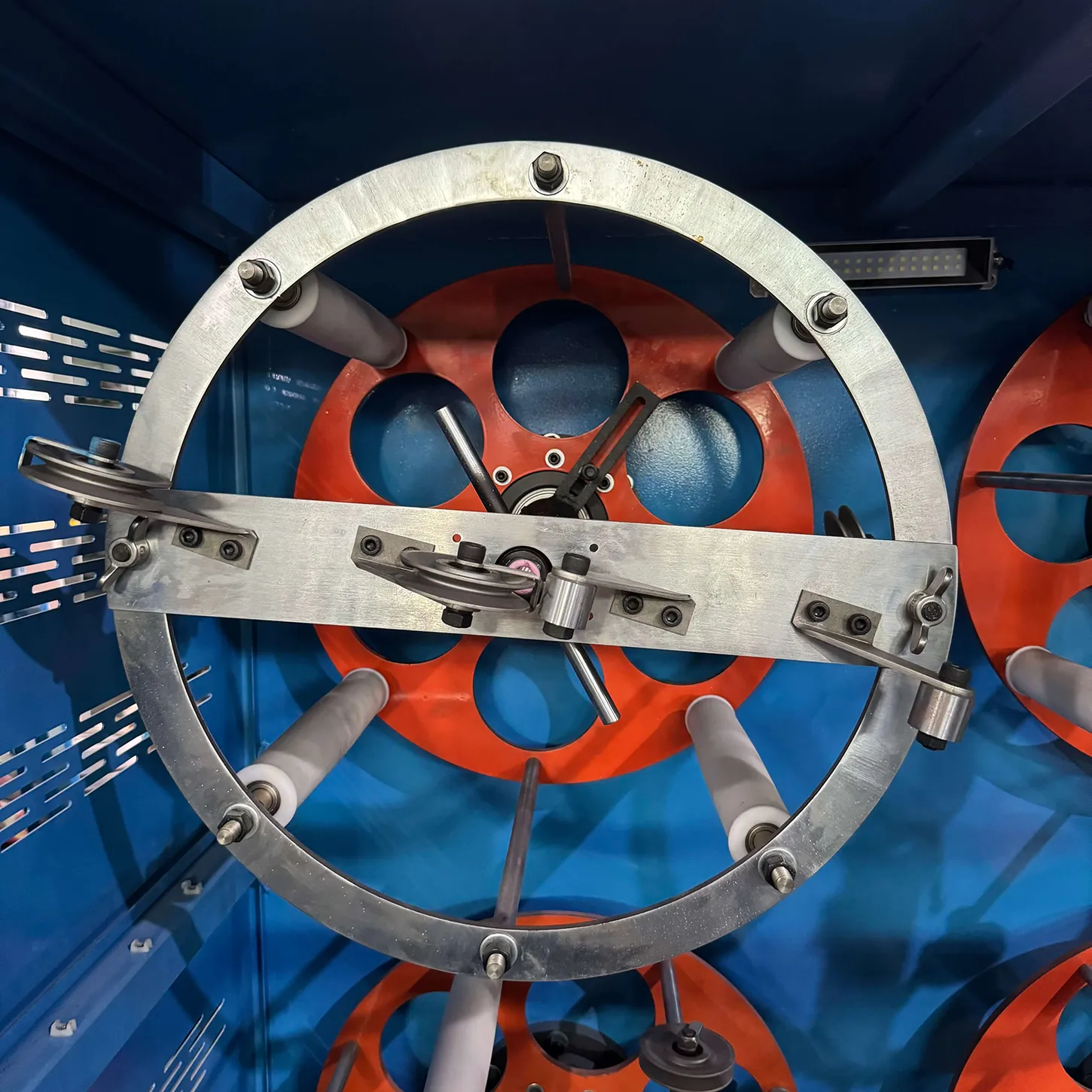

Rotary frame structure
Fabricated with high-strength welded steel plate
Dynamic Performance
Minimal rotational inertia
High-speed operation
Smooth running
Low noise emission
Control System
Synchronized untwisting control
Encoder-interlocked main drive operation
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
