APPLICATION & FEATURES

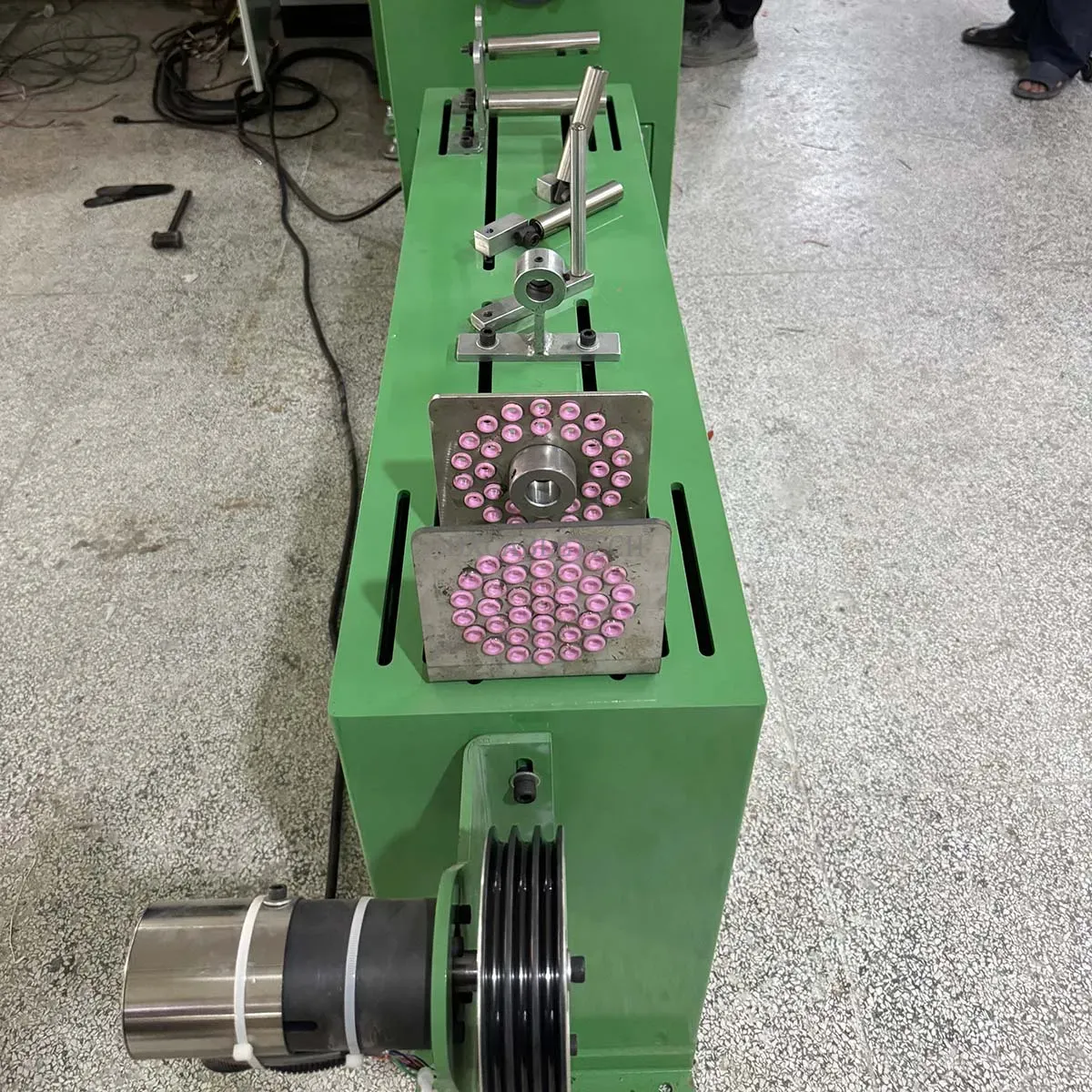

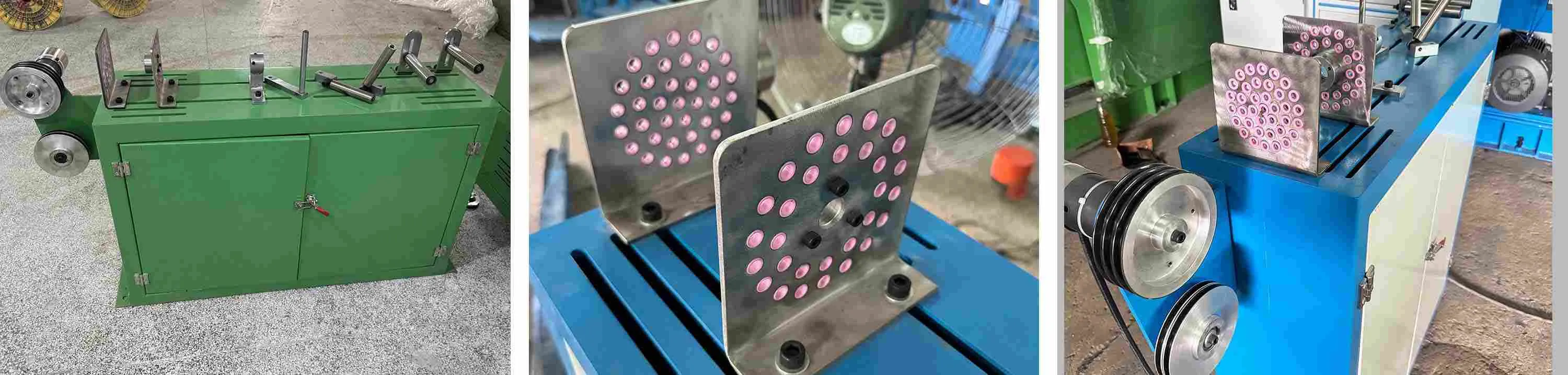

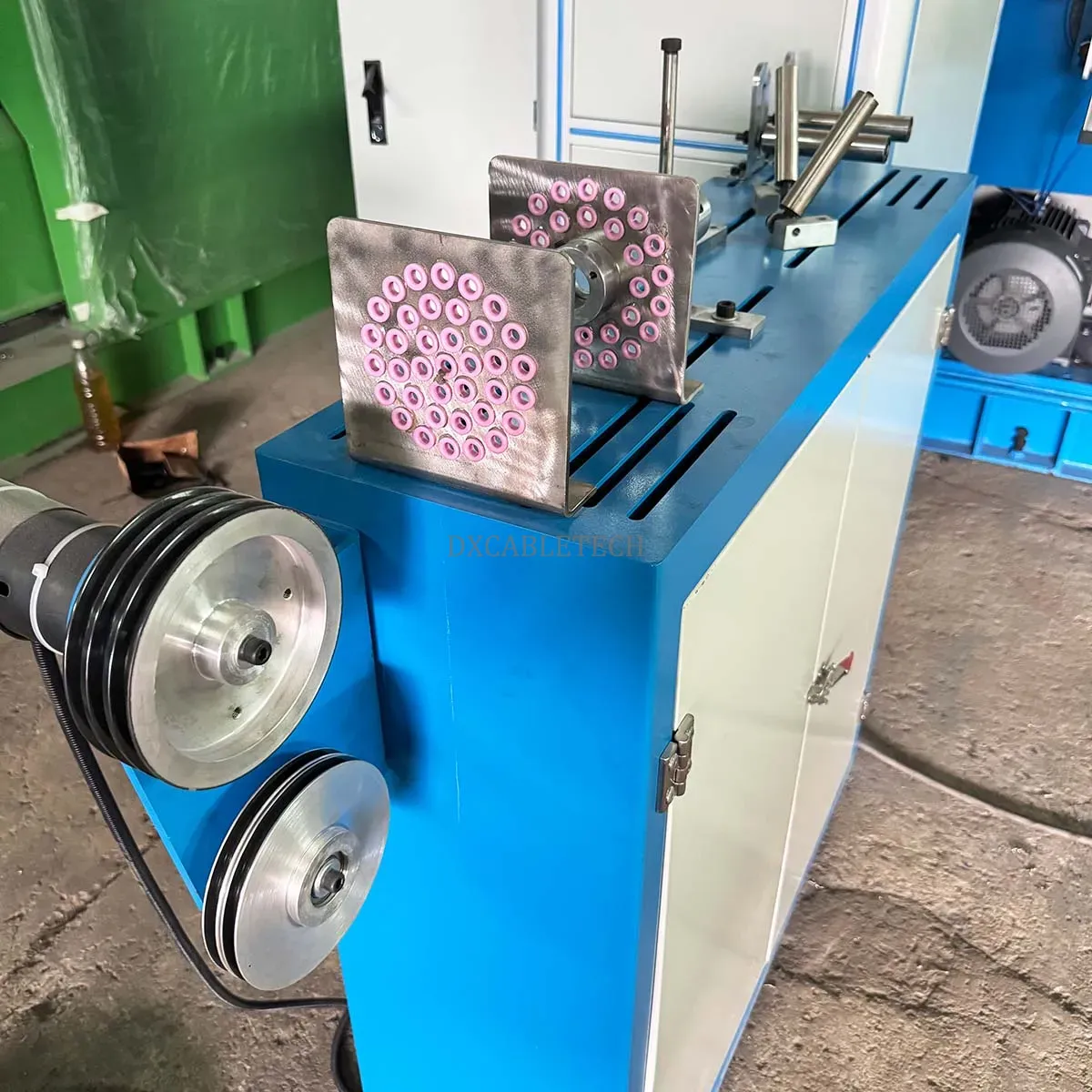

The ceramic eyelets concentric wire stranding collector stand is designed for core grouping before bunching and stranding. It ensures smooth wire feeding, stable alignment, and reliable tension control, helping improve cable roundness and overall product quality.
Key Features
-
Standard 1+6+12+18 grouping
-
Smooth ceramic eyelets to prevent wire scratching
Adjustable guide plate for accurate grouping point
-
Encoder-based meter counting
-
Stable box-type platform design
-

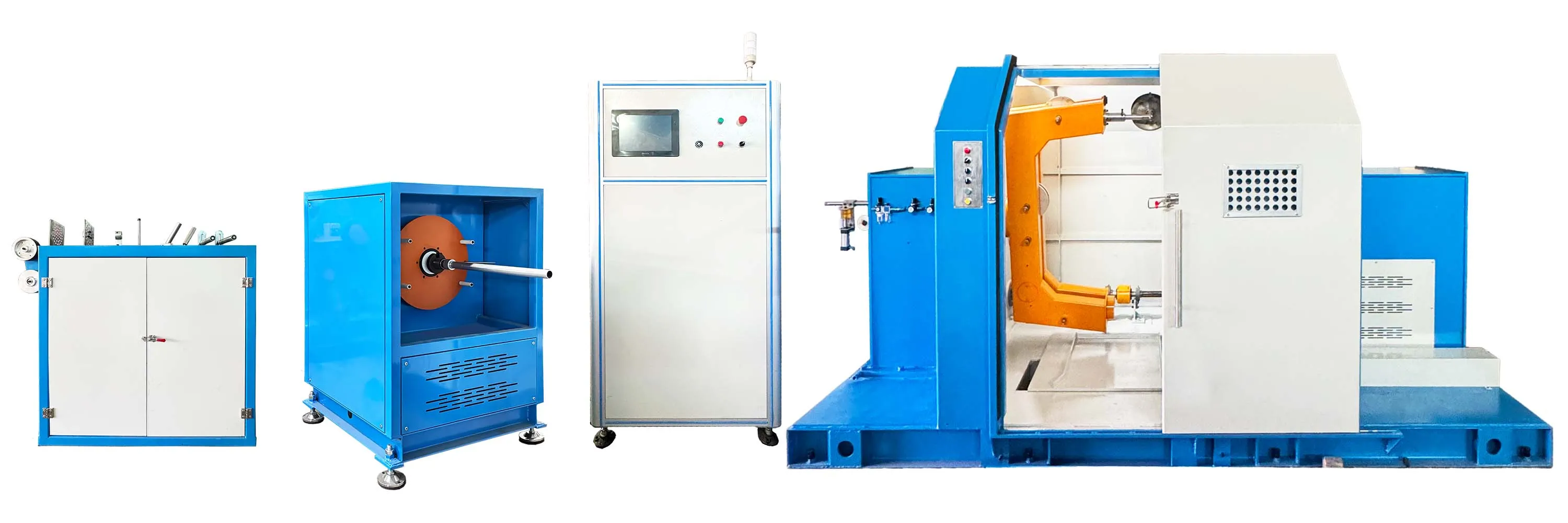

Compatible with most bunching & stranding lines
Applications
-
Power / control / data cable
-
Multi-core cable grouping
-
Pre-bunching / pre-stranding
A practical solution for achieving stable guiding, better cable shape, and improved production efficiency.
Technical Specifications
Can Be Customized:
| Item | Specification |
|---|---|
|
Product Name |
Ceramic Wire Guide Rack (1+6+12+18) |
|
Structure Type |
Box-type platform / Core grouping stand |
|
Standard Grouping Plate |
1+6+12+18 configuration |
|
Guide Hole Diameter |
Ø 5–10 mm (customized per wire OD) |
|
Ceramic Eyelet Diameter |
Ø 30 mm |
|
Metering Perimeter |
400 m |
|
Metering Method |
Encoder speed + length counter |
|
Center Height |
Aligned with stranding mainframe centerline |
|
Adjustment |
Horizontal movement of guide plate and eyelet block |
|
Application |
Cable core grouping before bunching / stranding |
|
Optional Configuration |
Custom hole size, plate layout, height & eyelet material |
Machine Composition:
-
ceramic eyelets concentric wire frame
-
Electric control system
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
