SPECIFICATIONS
Can Be Customized：
| Specification | Details |
|---|---|
| Power | AC380V |
| Direction of Operation | Right machine (Wire enters from the left direction); determined by the actual customer |
| Rotational Speed (RPM) | Maximum 350 revolutions per minute |
| Coil Size | Maximum Outer Diameter (OD): 450mm, Inner Diameter (ID): 180mm (Average diameter span), Width: 270mm; (Size range requires custom design, and customers can decide based on their budgets) |
| Drive Motor | Winding system consisting of a single-axis 2.2KW variable-frequency motor and an inverter |
| Cable Device | Crank mechanism and winding shaft synchronization |
| Measuring Device | Decoder for precise length calculation |
| Control System | Siemens microcomputer programmable logic controller (PLC) |
| Operation Interface | Human-Machine Interface (HMI) |
| Settings | Touch screen, speed control button, emergency stop button |
APPLICATIONS & FEATURES
Applications:

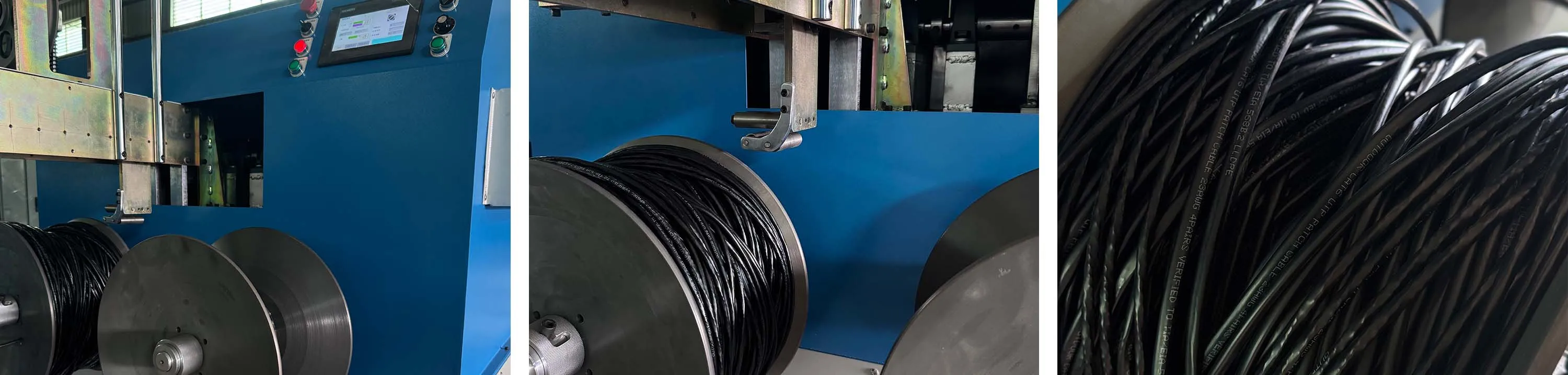

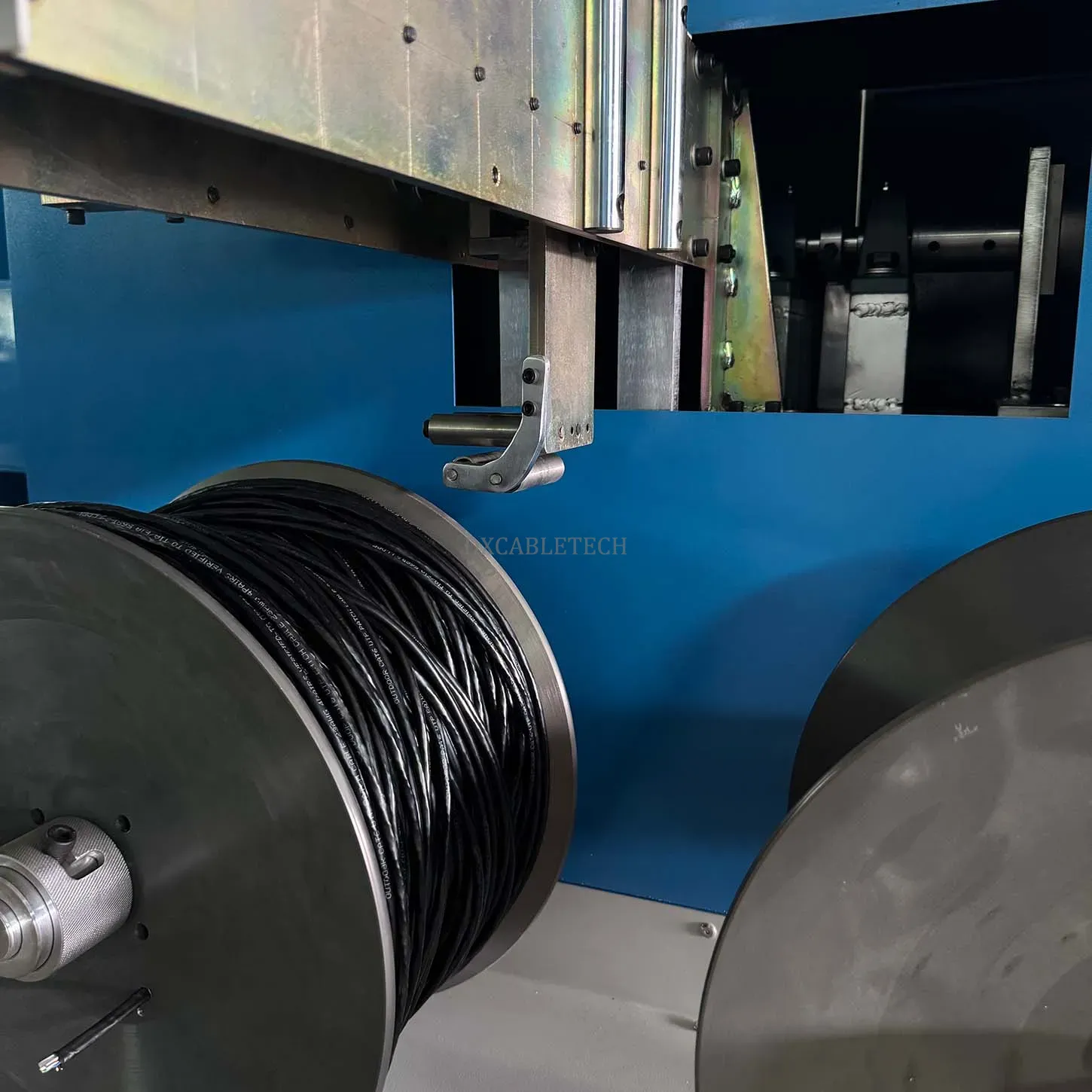

For network cables, coax, audio and data cable coiling, meshing into a circle. Can linked after sheath line for coiling and further packaging into box.
Features:
Dual-Axis Automation - Continuous operation: Auto-shifts to Axis B when A completes
Auto-Guard Ring System - Eliminates manual handling of protective discs
PLC Precision - Ensures perfect sleeve-compatible center holes
Labor-Saving Design - Reduces operators by 60% vs traditional machines
Zero Downtime - Uninterrupted production during reel changes
OUR SERVICE
Provide Free Pre-sales Training:
We can provide customer training to ensure that the customer can operate the machine fully—this includes correct operating mode, your maintenance method correctly and removing simple problems.
Customer On-site Installation Guide:
The buyer pays for the round-trip airfare, board, lodging, security, and each person's daily wage.
After-sales Service Content Details:
We support the After-sales in response quickly, to complete the delivery.
Free service guarantee period: 12 months from the date of shipment (except for wearing parts).
We will charge you for travel fees and other costs.
If the visa is received on time, our engineers will respond within 24 hours inland and up to 2 weeks overseas.
